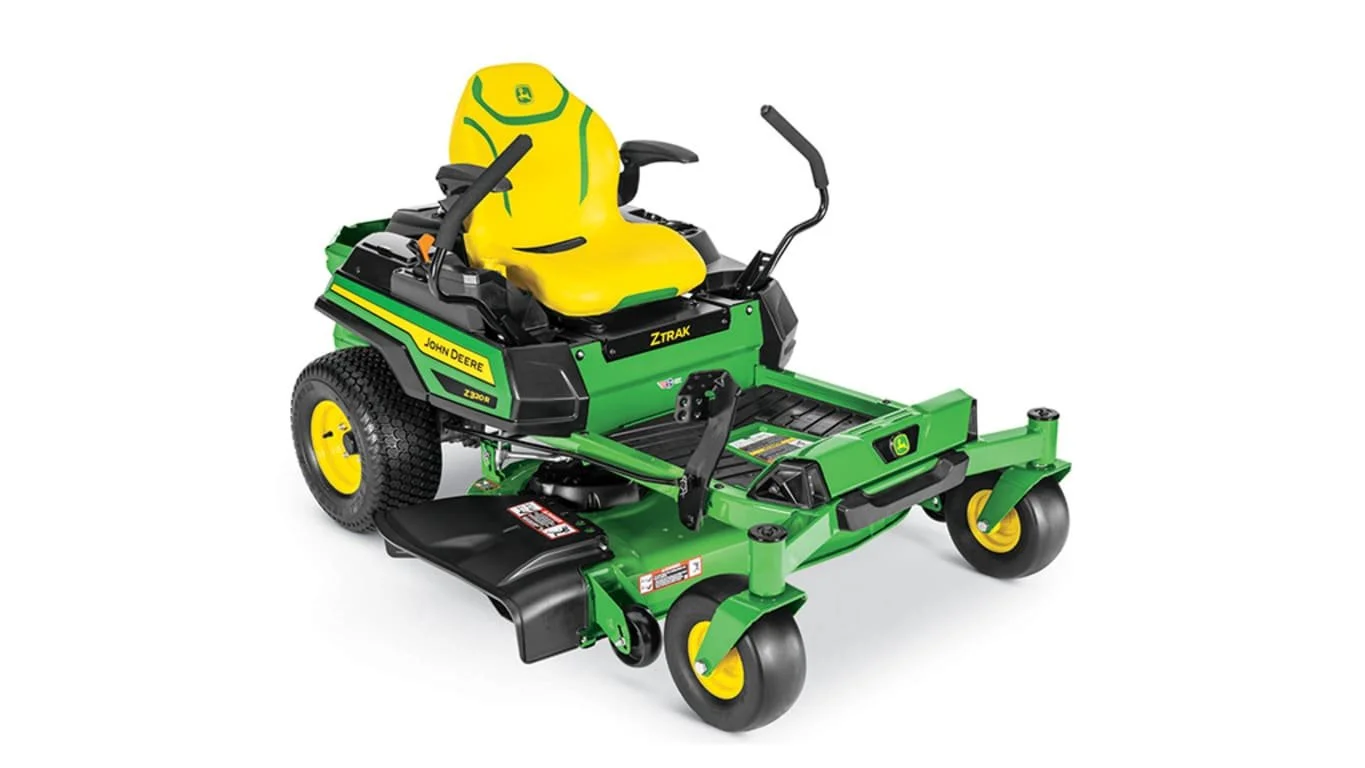

Z20R ZTrak™ Mower with 42-in. Decks
Z20R ZTrak™ Mower with 42-in. Decks
Z20R ZTrak™ Mower with 42-in. Decks

Z20R ZTrak™ Mower with 42-in. Decks

$1,418.20

See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) Buyer's notes Mulching system Optional MulchControl attachment Rubber floor mat Standard Sun shade Optional Mounted sprayer Not available Protective cover Optional Light kit Standard

Cutting width42 in (107 cm)
Assembly30 minutes · 1 person
PetrolPalletised · kerbside delivery

In stock, ships today

SKU: HH22281-2 Category: Brand:

Description

See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) Buyer's notes Mulching system Optional MulchControl attachment Rubber floor mat Standard Sun shade Optional Mounted sprayer Not available Protective cover Optional Light kit Standard Material collection system Two-bag cut-and-throw MCS, 6.5 bu 229 L Optional attachments Manufacturing location Greeneville, Tennessee, USA Date collected 3-Oct-22

Specifications

Enginepower 21.5 hp 16.0 kW Engine model number FR651V Forward speed 0-7 mph 0-11.3 km/h Front caster tires 11×6-5
Drivetires 18×8.5-8 Seat back height High back with armrests, 20 in. 51 cm Width of cut Accel Deep mower deck, 42 in. 107 cm Mulching system Optional MulchControl attachment
Warranty3 year or 200 hour bumper-to bumper* (*Term limited to years or hours used, whichever comes first, and varies by model.
WarrantyFOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) Key Specs Power 21.5 hp 16.0 kW
Modelnumber FR651V
Displacement44.3 cu in. 726 cc Cylinders V-twin Lubrication Full pressure with replaceable filter, capacity, 2.2 U.S. qt 2.1 L Type Overhead valve
Battery12 V 300 CCA Choke/speed control Separate levers
Coolingmethod Air
Fuel Tankcapacity 3.0 U.S. gal.
EngineDual hydros Hydro-Gear EZT-C with 1-in. (2.5-cm) axles
Drivetrain Forward speed 0-7 mph 0-11.3 km/h Reverse speed 0-3.5 mph 0-5.6 km/h
Speedand direction control Twin levers Control adjustment 3 height, 11 positions Travel speed
DriveV-belt PTO
Weight572 lb 260 kg
Warranty3 year or 200 hour bumper-to bumper* (*Term limited to years or hours used, whichever comes first, and varies by model.
BrandJohn Deere
Cutting width42 in (107 cm)
Power typePetrol
Assembly30 minutes, 1 person
DeliveryPalletised, kerbside
  • Heavy-duty 2.5-in. x 2-in. (6-cm x
  • 5-cm) front, and 1.5-in. x
  • 2-in. (4-cm x 5-cm) side tubing
  • Primer/paint E-coat/powder
  • Front caster tires 11×6-5 Front caster bearings Sealed ball bearings
  • tires 18×8.5-8 Hour meter
  • Yes Service interval decal
  • Yes Storage compartment Standard covered
  • Cup holder Yes Maximum towing capacity
  • 250 lb 113 kg Chassis Seat back height
  • High back with armrests, 20 in. 51 cm
  • Fore-aft adjustment 2.9 in. 7 cm
  • Seat suspension Two springs
  • Foot lift Mower cut height
  • 1.25-4.5 in. 3-11 cm Cut height increments
  • 0.25 in. 0.64 cm Preset cut height
  • Yes Lift system Width of cut
  • Accel Deep mower deck, 42 in. 107 cm
  • Type Side discharge Mower deck material
  • 12 gauge 0.105 in. 2.7 mm
  • Mower drive system V-belt
  • Mower deck Type Electric, 105 lb-ft 142 Nm
  • 49.4 in. 1255 mm Overall length
  • 75.4 in. 1915 mm Width without mower
  • 43.3 in. 1100 mm Width with mower
  • 50.4 in. 1280 mm Width with mower (deflector raised for storage)
  • 46.5 in. 1180 mm Height 43.3 in. 1100 mm
  • Rollover protective structure (ROPS)
  • No Slope operating limit 13 degrees; 10 degrees with
  • Material Collection System
  • Operator presence system Yes
  • Park brake interlock Yes Operator video
  • Yes, online Operation Note
  • 1 Durable Accel Deep Mower
  • Decks are made from 12-gauge steel with double captured mower wheels
  • Note 2 Easily change cut height from
  • 1.25 to 4.5 in. (3 to 11 cm) using the foot lift and cutting height dial
  • Note 3 Integrated park brake is automatically applied when steering levers are stowed outward
