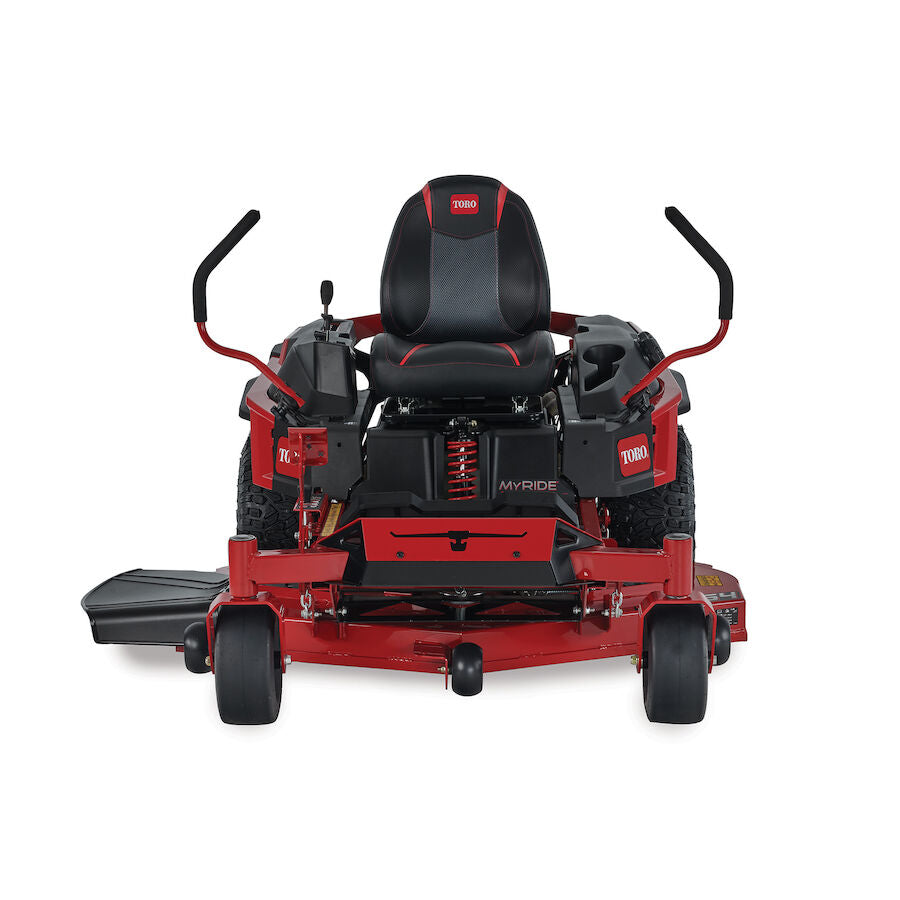

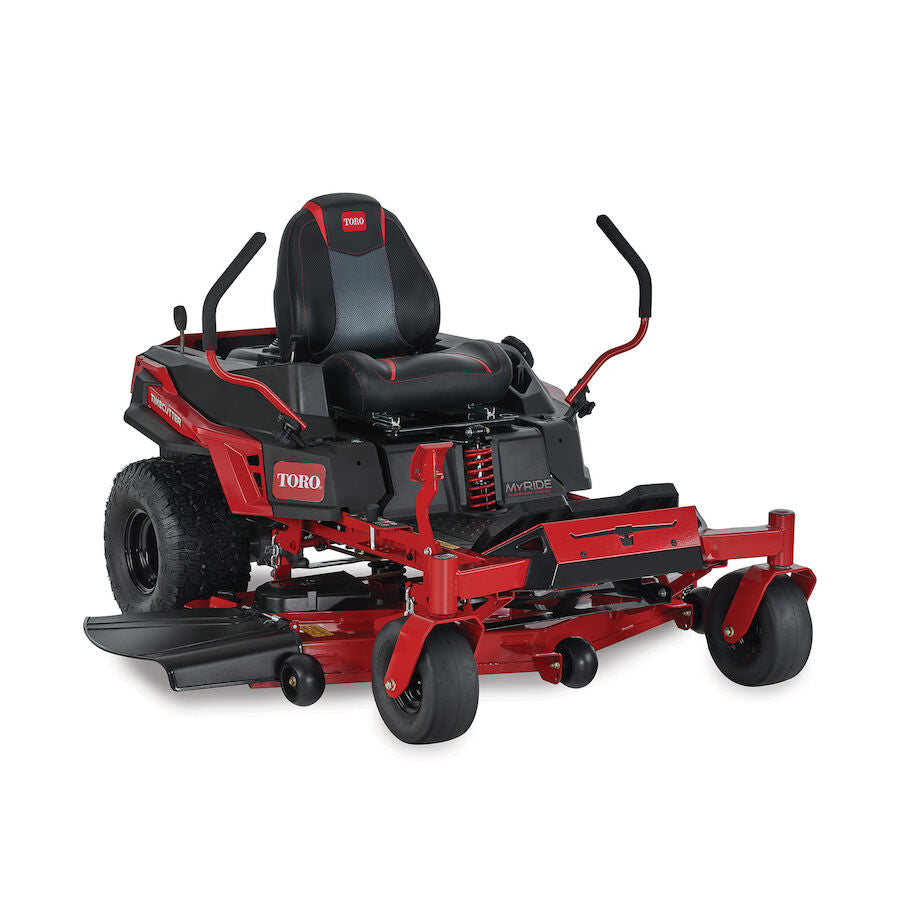

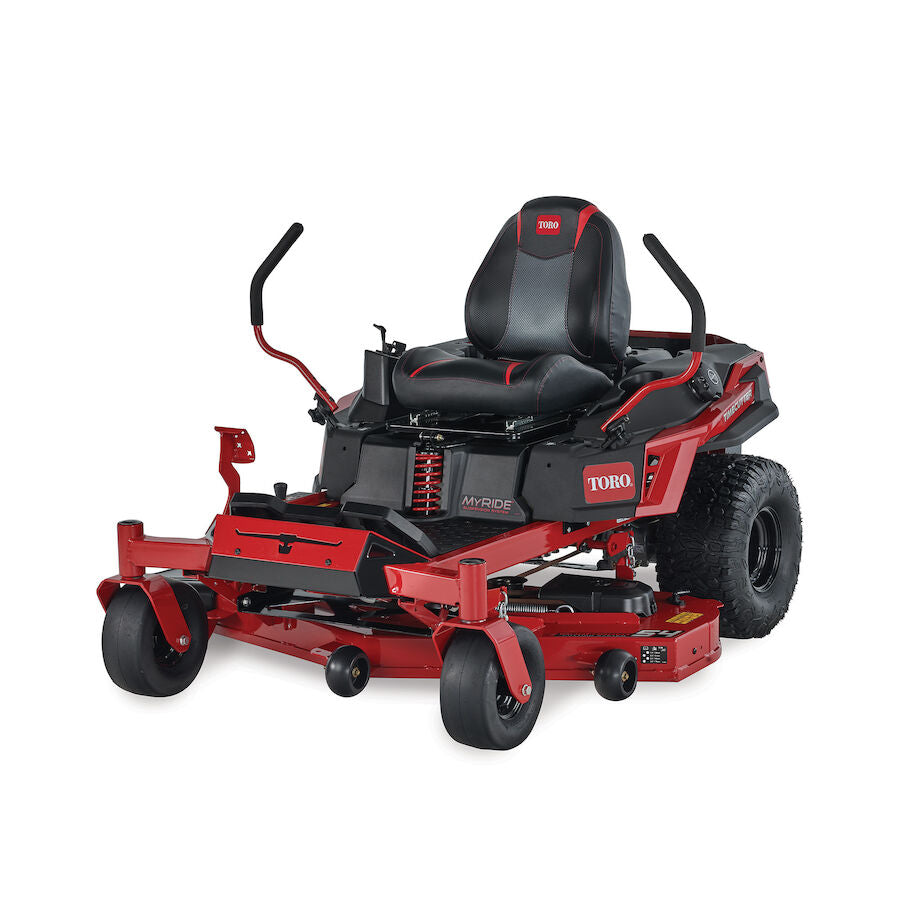

Toro Timecutter Max 23hp Kawasaki Engine 54" FAB Deck Z-Turn Mower w/ MYRIDE #77503
Toro Timecutter Max 23hp Kawasaki Engine 54" FAB Deck Z-Turn Mower w/ MYRIDE #77503
Toro Timecutter Max 23hp Kawasaki Engine 54" FAB Deck Z-Turn Mower w/ MYRIDE #77503

Toro Timecutter Max 23hp Kawasaki Engine 54″ FAB Deck Z-Turn Mower w/ MYRIDE #77503

$1,599.00

54 in. (137 cm) TimeCutter Max MyRide Zero Turn Mower Featuring MyRIDE Suspension System Specifications.

  • Patented MyRIDE Suspension sits isolated from the frame to save your back and accelerate your mow
  • Over 100 years of Pro DNA course through the veins of every mower we build
  • Its heavy duty steel IronForged Deck doesn't flinch no matter what you throw its way
  • The four-point deck hanging system doesn't flinch under your feet when you get on or off the mower
  • Beefy hybrid-tread rear tires give you maximum traction without tearing up your turf
  • Automotive-style fuel fill means less mess as you top off the huge 5 gallon tank
Cutting width54 in (137 cm)
Assembly30 minutes · 1 person
PetrolPalletised · kerbside delivery

In stock, ships today

SKU: 61025922378909 Category: Brand:

Description

54 in. (137 cm) TimeCutter Max MyRide Zero Turn Mower Featuring MyRIDE Suspension System Specifications.

Specifications

BrandToro
Cutting width54 in (137 cm)
Power typePetrol
Assembly30 minutes, 1 person
DeliveryPalletised, kerbside
Air FilterStandard Kawasaki Air Cleaner
Anti Scalp Wheels3 Standard
ArmrestsOptional (Not Included)
Bagger Capacity79503 4.9 bushels (Not Included)
Blade Tip Speed17,700 ft/min / 5,395 m/min
Box Dimensions82.0 in. x 57.0 in. x 35.0 in. / 208.3 cm x 144.8 cm x 88.9 cm
CARB CompliantNot CARB Compliant
Carrier Frame3 in. x 1.5 in. x 0.120 in. (7.6 cm x 3.8 cm x 0.3 cm) Wall Tubular Steel
Caster Tires12 in. x 6 in., 5 in. (30.5 x 12.2 cm, 12.7 cm) Pneumatic
ClutchElectromagnetic
Comfort PlatformMyRIDE Suspension System
Cooling SystemAir Cooled
Crankshaft1" (25 mm) w/Steel Protector
Cup HolderStandard
Cutter SystemSteel Cutting Blade
Deck Design10-Gauge steel IrongForged
Deck Material10 Gauge Steel
Deck Size54 in / 137 cm
Discharge ChuteSide
Drive SystemHydrostatic
Drive Tires20 in. x 10 in., 8 in (51 cm x 26 cm, 20.3 cm)
Drive TypeRear-Wheel Drive
Engine23 hp Kawasaki FR691V 726cc
Engine BrandKawasaki
Engine Displacement (cc)726 cc
Engine Horsepower23.0 hp
Engine Power (kW)17.2 kW
Foot Operated Height of CutStandard
Forward Ground/Transport SpeedUp to 7.0 mph / 11.2 kph
Forward Mowing SpeedUp to 7.0 mph / 11.2 kph
Frame3 in. x 1.5 in. (7.6 cm x 3.8 cm) Steel Tubing
Fuel Capacity5 gal. / 18.9 L / 20 Qt.
Fuel TypeGasoline
Greasable BearingsYes
Height of Cut1.0-5.0 in. / 2.5-12.7 cm
Hitch BracketStandard
Hour MeterOptional (Not Included)
Hydraulic DriveStandard
LightingOptional (Not Included)
Number of Blades3
Product TypeTimeCutter Max MyRide
Product UseResidential
Recommended Oil Type10W-30
Roll-Over Protection (ROPS)Optional (Not Included)
Seat19" Gaming Style
Spindle BearingsMaintenance-free
Spindle HousingCast-Aluminum
Start TypeElectric
Steering ControlsTwin Lever
Steering DampenersStandard Dampers
Terrain TypeFlat with Obstacles
Tires12 in. x 6 in. (30.5 cm x 15.2cm) Front, 20 in. x11 in. (50.8 cm x 27.9 cm) Rear
TransmissionDual Hydrostatic HG-EZT2200
Washout PortStandard
Weight684 lbs / 310.3 kg
Engine makeToro
