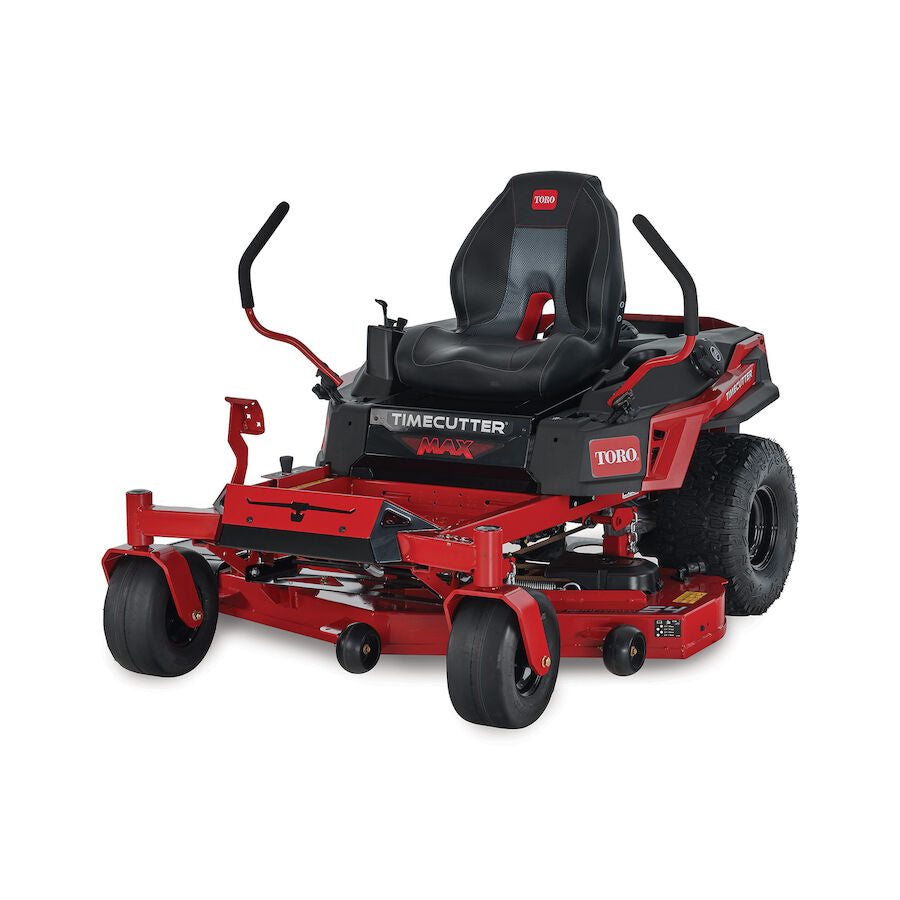

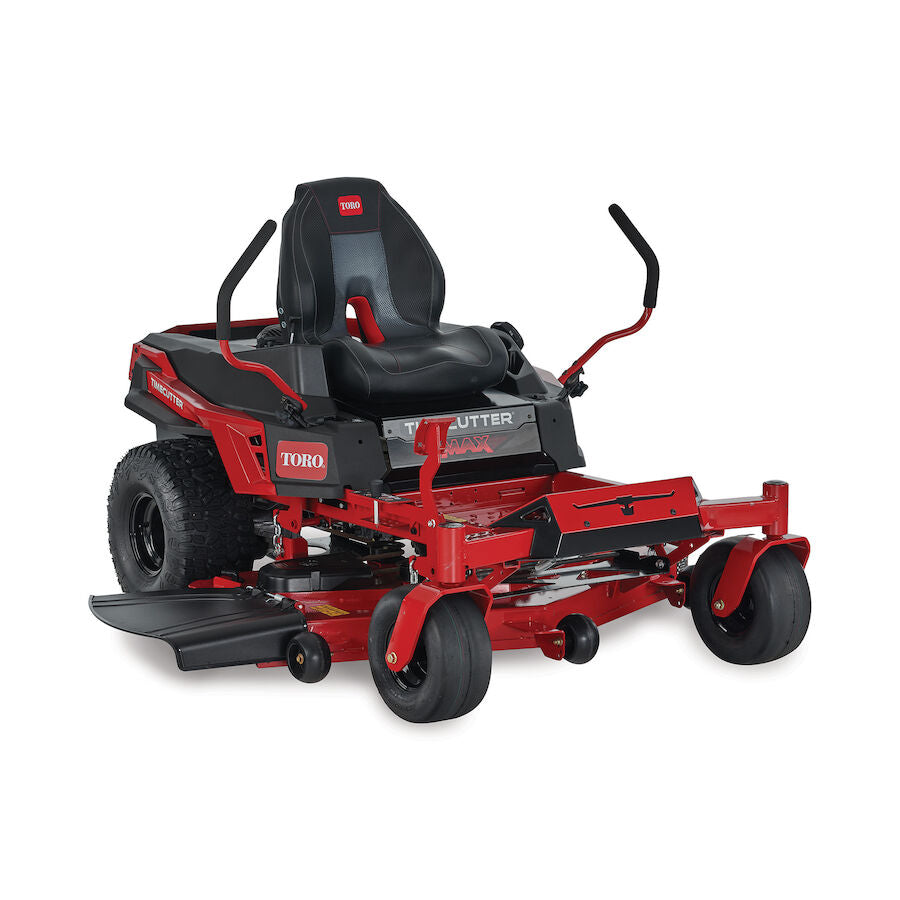

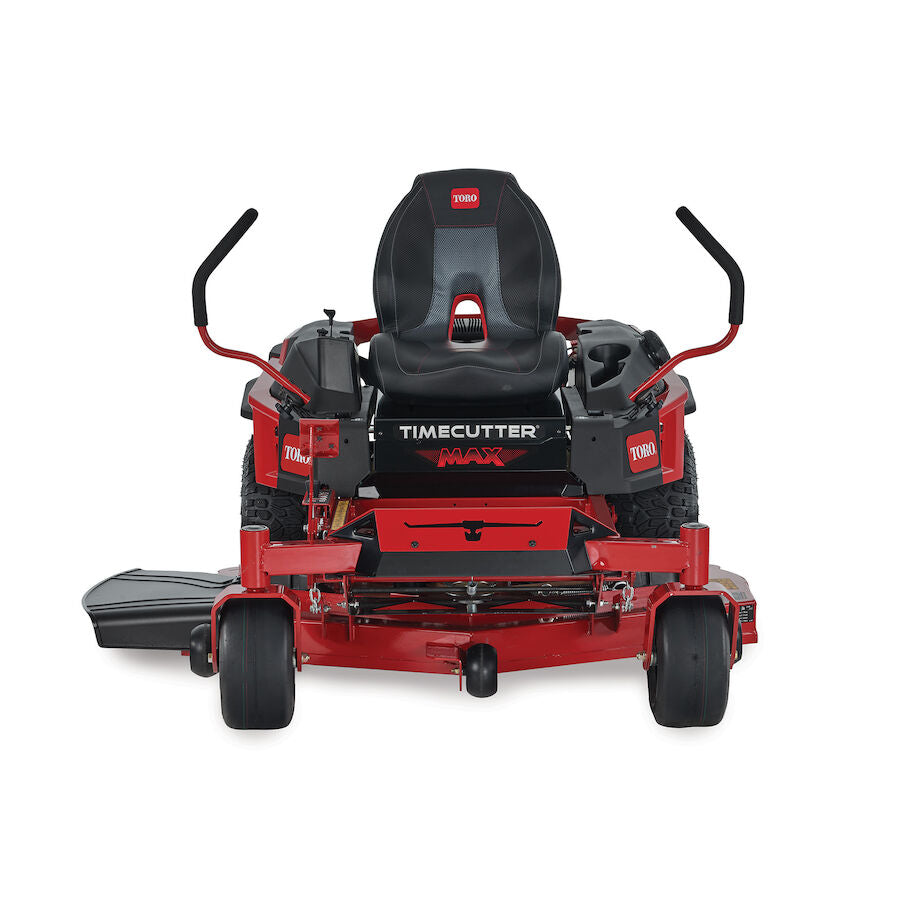

Toro Timecutter MAX 23hp Kawasaki Engine 54" FAB Deck Z-Turn Mower #77504
Toro Timecutter MAX 23hp Kawasaki Engine 54" FAB Deck Z-Turn Mower #77504
Toro Timecutter MAX 23hp Kawasaki Engine 54" FAB Deck Z-Turn Mower #77504

Toro Timecutter MAX 23hp Kawasaki Engine 54″ FAB Deck Z-Turn Mower #77504

$2,100.00

As configured to meet safety, emission and operating requirements, the actual engine horsepower on this mower may be significantly lower. †See retailer for warranty details. ‡Specifications subject to change without notice and without incurring obligation. Products depicted are for demonstration purposes only.

  • Over 100 years of Pro DNA course through the veins of every mower we build
  • Its heavy duty steel IronForged Deck doesn't flinch no matter what you throw its way
  • The gaming-style seat gives you big time support exactly where you need it
  • The four-point deck hanging system doesn't flinch under your feet when you get on or off the mower
  • Beefy hybrid-tread rear tires give you maximum traction without tearing up your turf
  • Automotive-style fuel fill means less mess as you top off the huge 5 gallon tank
Cutting width54 in (137 cm)
Assembly30 minutes · 1 person
PetrolPalletised · kerbside delivery

In stock, ships today

SKU: 61025922887389 Category: Brand:

Description

As configured to meet safety, emission and operating requirements, the actual engine horsepower on this mower may be significantly lower. †See retailer for warranty details. ‡Specifications subject to change without notice and without incurring obligation.

Products depicted are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments and safety features. The same drop pin height of cut used by the pros. So you can adjust to the perfect height, quickly.

The extra-large, built-in drink holder keeps your beverage handy so you can keep powering through. Accessory List (Not Included) Model/Part # Description 139-3235 Recycler Mulch Kit 79501 TIMECUTTER Non-Powered Bagger

Specifications

SpecificationsToro Timecutter MAX 23hp Kawasaki Engine 54" FAB Deck Z-Turn Mower #77504 Disclaimer *23 HP gross (726 cc) at 3,300 RPM SAE J1940 and SAE J2723, as rated by Kawasaki.
BrandToro
Cutting width54 in (137 cm)
Power typePetrol
Assembly30 minutes, 1 person
DeliveryPalletised, kerbside
Air FilterStandard Kawasaki Air Cleaner
Anti Scalp Wheels3 Standard
ArmrestsOptional
Bagger Capacity4.9 bushels
Blade Tip Speed17,700 ft/min / 5,395 m/min
Box Dimensions82.0 in. x 57.0 in. x 35.0 in. / 208.3 cm x 144.8 cm x 88.9 cm
CARB CompliantNot CARB Compliant
Carrier Frame3 in. x 1.5 in. x 0.120 in. (7.6 cm x 3.8 cm x 0.3 cm) Wall Tubular Steel
Caster Tires12 in. x 6 in., 5 in. (30.5 x 12.2 cm, 12.7 cm) Pneumatic
ClutchElectromagnetic
Comfort PlatformStandard Suspension
Cooling SystemAir Cooled
Crankshaft1" (25 mm) w/Steel Protector
Cup HolderStandard
Cutter SystemSteel Cutting Blade
Deck Design10-Gauge steel IrongForged
Deck Material10 Gauge Steel
Deck Size54 in / 137 cm
Discharge ChuteSide
Drive SystemHYDRO
Drive Tires20 in. x 10 in., 8 in (51 cm x 26 cm, 20.3 cm)
Drive TypeRear-Wheel Drive
Engine23 hp Kawasaki FR691V 726cc
Engine BrandKawasaki
Engine Displacement (cc)726 cc
Engine Horsepower23.0 hp
Engine Power (kW)17.2 kW
Foot Operated Height of CutStandard
Forward Ground/Transport SpeedUp to 7.0 mph / 11.2 kph
Forward Mowing SpeedUp to 7.0 mph / 11.2 kph
Frame3 in. x 1.5 in. (7.6 cm x 3.8 cm) Steel Tubing
Fuel Capacity5 gal. / 18.9 L / 20 Qt.
Fuel TypeGasoline
Greasable BearingsYes
Height of Cut1.0-5.0 in. / 2.5-12.7 cm
Hitch BracketStandard
Hour MeterOptional
Hydraulic DriveStandard
LightingOptional
Number of Blades3
Product TypeTimeCutter Max
Product UseResidential
Recommended Oil Type10W-30
Roll-Over Protection System (ROPS)Optional
Seat19" Gaming Style
Spindle BearingsMaintenance-free
Spindle HousingCast-Aluminum
Start TypeElectric
Steering ControlsTwin Lever
Steering DampenersStandard Dampers
Terrain TypeFlat with Obstacles
Tires12 in. x 6 in. (30.5 cm x 15.2cm) Front, 20 in. x11 in. (50.8 cm x 27.9 cm) Rear
Tow CapacityCombined machine, user, towed weight may not exceed 1,000 lbs.
TransmissionDual Hydrostatic HG-EZT2200
Washout PortStandard
Weight653 lbs / 296.2 kg
Model/Part #Description
139-3235Recycler Mulch Kit
79501TIMECUTTER Non-Powered Bagger
Engine makeToro
